NANORANGER

NanoRanger®  £174.95(VAT EX)   Prices Will Increase in April 2024 - Get   Yours Now!

    Already a NanoRanger® User?  Leave a review at the link below!

Check out how we developed our prototypes here!


   Features*

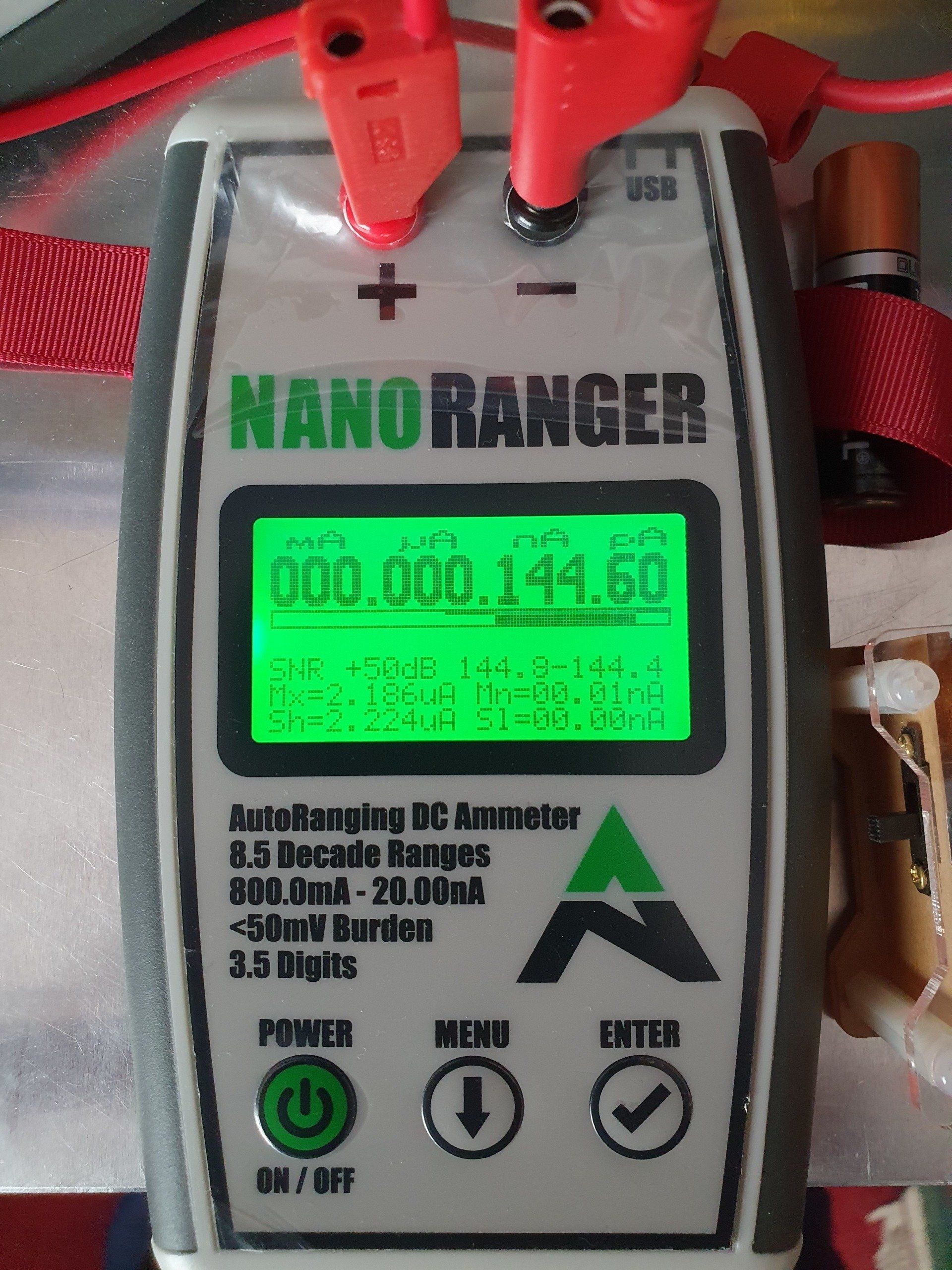

  • A 128 x 64 LCD display gives a wealth of information about your current readings.
  • A large 11-digit display shows mA, uA, nA and pA, all on one line.
  • Running Average reading (current and time elapsed) to measure power consumption of specific events; for example, a radio transmission.
  • Fully isolated USB Interface for device control and readings export.
  • The Range Bar can be ‘bracketed’ or limited to just one range.
  • Range Bar movement after every reading shows that NanoRanger® is operating.
  • Range Coverage Bar shows the ranges covered during the measurement.
  • Low Burden Voltage (<0.05V) on all ranges.
  • Fast Up-Range switching (30uS / range) under load changes.
  • Down-range switching when full reading is below range threshold.
  • Readings every 300mS, built up from 180 samples and averaged to tune out mains noise (both 50 Hz and 60 Hz).

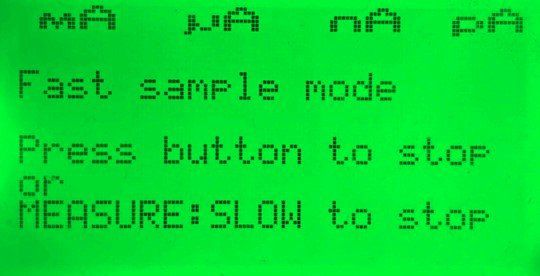

  • A new 'Fast Sample' Mode, running at 150 measurements per second.
  • SNR display indicates noise level on signal.
  • User-configurable Auto Power-off timer.
  • The NanoRanger® dimensions are 148 x 90 x 30mm.
  • 2 x AA batteries give around 150 hours of operation.



* Features may be subject to change.


DESIGNED BY ENGINEERS, FOR PROFESSIONALS.


NOW WITH NEW SOFTWARE THAT ENABLES RAPID SAMPLING!



DEVELOPED AND MADE IN THE UNITED KINGDOM.


NOW AVAILABLE IN THE STORE! (if you can't see a shipping option for your location, please CONTACT US and we'll do our best to help)


If you have a 6.5 digit DMM that promises 1nA resolution, but you find the lowest current range is 2.000000mA and absolute accuracy is + / - 500nA, then you need NanoRanger®, with ranges every decade.


AltoNovus specialises in designing and building Low Power devices.   We all want the most efficient design, to get the best possible device endurance, so we need to measure power consumption with great accuracy - even at very low levels.   Existing solutions range from very expensive ammeters (thousands of USD/GBP) to cheaper devices that have manual and/or more limited ranges.  Needing something different, we decided to build our own.

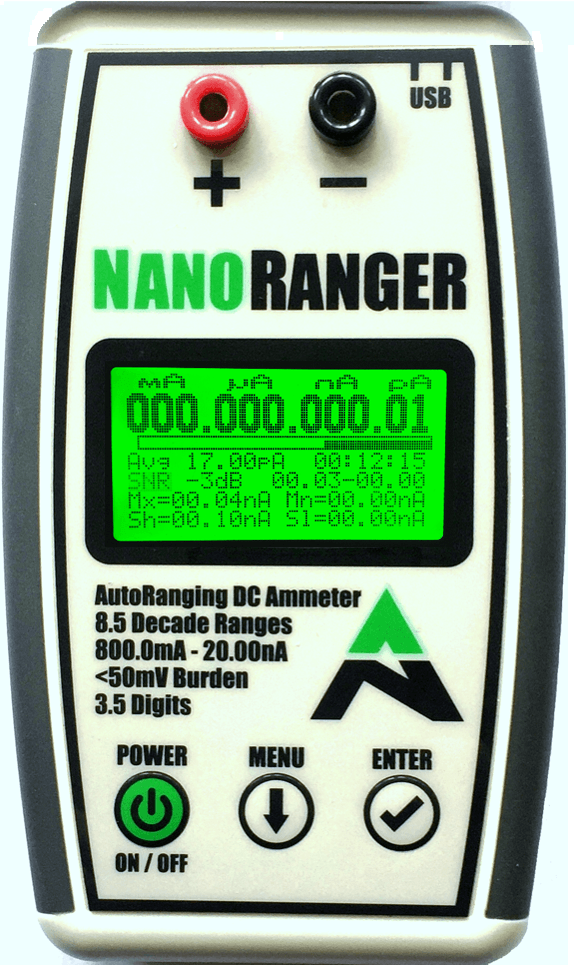

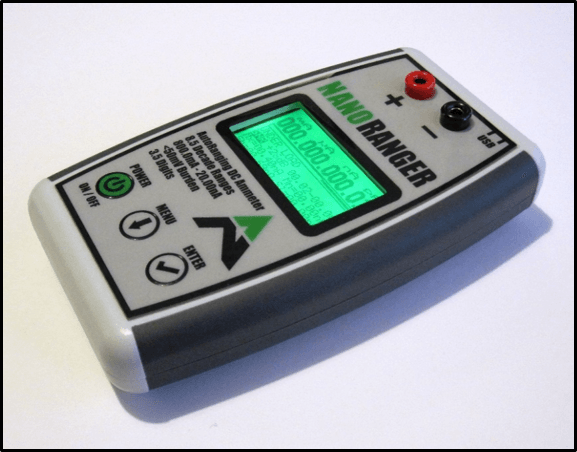

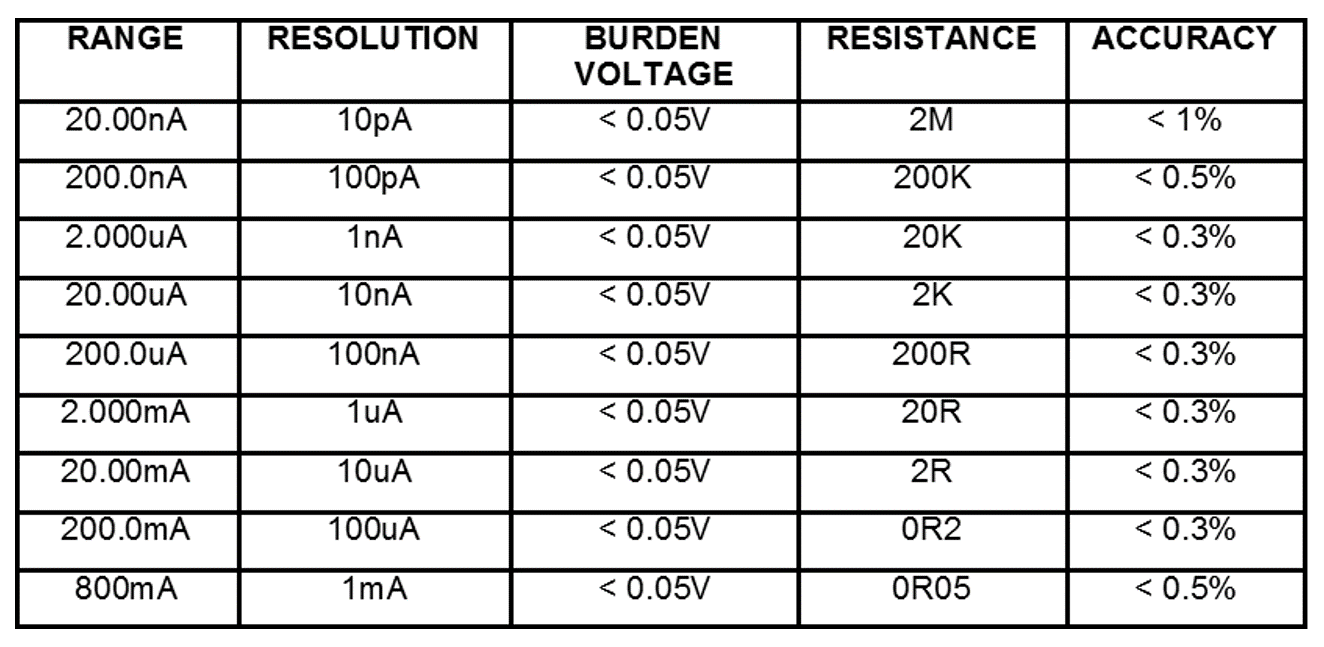

NanoRanger® is an accurate, 3.5 Digit, affordable, DC ammeter to measure very low currents.  With automatic dynamic ranging (9 ranges across 8.5 decades), NanoRanger® measures from 800mA to 1nA, whilst offering a maximum resolution of 10pA.  Because each NanoRanger® is factory computer calibrated, we can limit the requirement for high-cost precision components, thus keeping the price to you low.  You can download the full Instruction Manual and Quick Start Guide below.  Also, check out  some NanoRanger® Applications here.

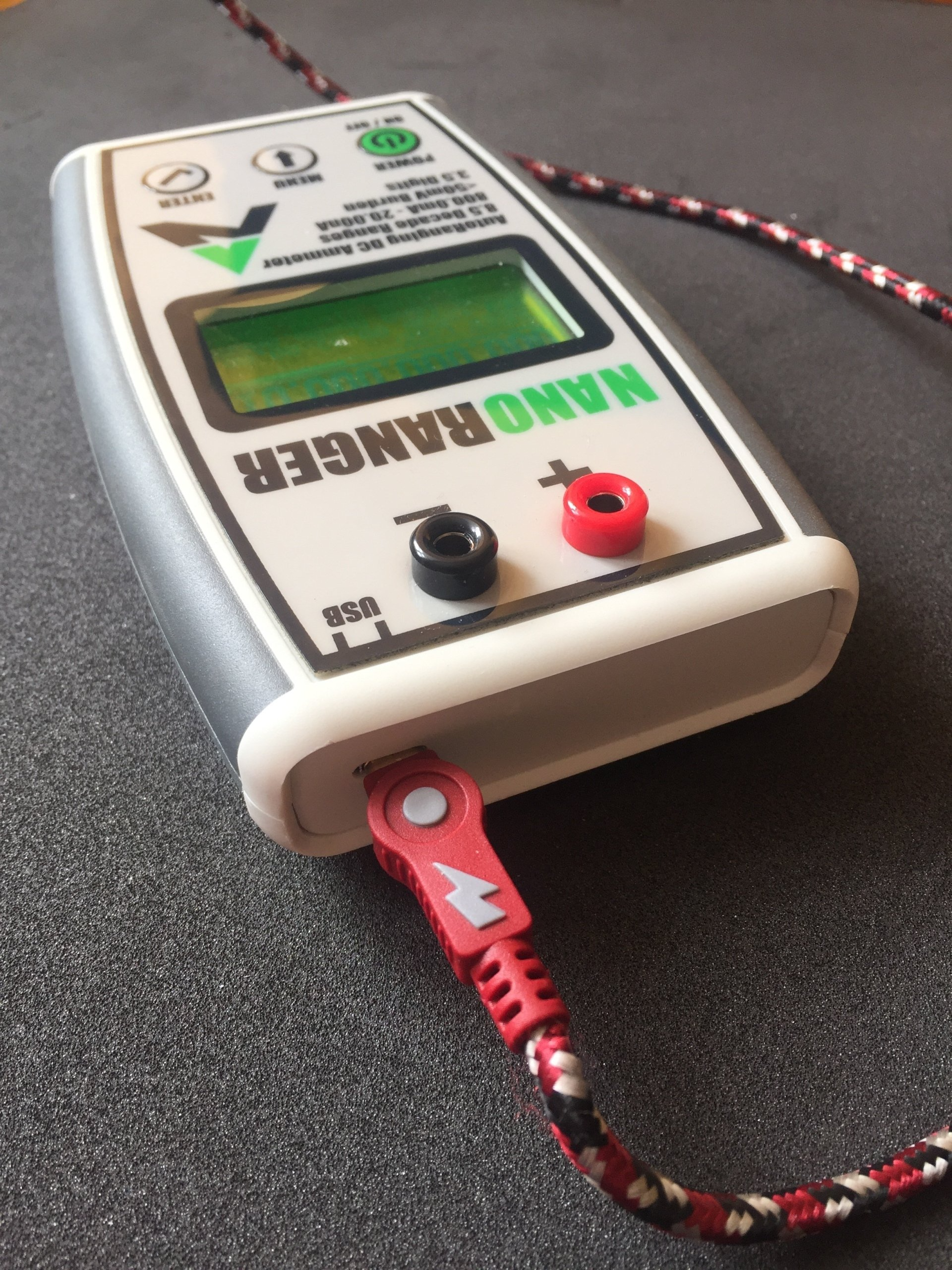

NanoRanger® is equipped with a fully isolated USB interface for device control and data export.  Being fully isolated means attaching a USB will not affect your measurements at all.  It is suitable for professionals and enthusiasts alike.  You will just need 2 x AA batteries and a set of industry standard, uninsulated, 4mm banana plug leads.


WHAT'S IN THE BOX?


Just the NanoRanger®!   We do not currently supply 2 x AA batteries, Probes or a Carry Case.  However, an example of compatible probes can be found here, but there are many others available.  Also, a Carry Case for a 6" display SatNav should be big enough for your NanoRanger®, but please be sure to check the measurements.


NanoRanger® is now available in the Store.


Please note - Due to Customs processes beyond their control, Royal Mail shipping to our overseas customers can sometimes take longer than their stated delivery aim. If you need your order urgently, please choose your shipping option accordingly.




DOWNLOAD THE LATEST DOCUMENTATION


Download the latest Instruction Manual below, for devices running Software V2.10 and later:

INSTRUCTION MANUAL V2.9 QUICK START GUIDE V6.6


DOWNLOAD DOCUMENTATION FOR EARLIER SOFTWARE VERSIONS


NanoRanger documentation for devices running Software up to V2.01 can be found below:


INSTRUCTION MANUAL V2.8 QUICK START GUIDE V6.6


NanoRanger documentation for devices running Software up to V1.14 can be found below:


INSTRUCTION MANUAL V2.7 QUICK START GUIDE V6.5

NANORANGER® AND RECHARGEABLE TECH!
Find out more about the utility of Bi-directional measurement here!



WHAT DO NANORANGER USERS SAY?

Peter Hanson, a NanoRanger Early Adopter, gave us his feedback.  See it, together with the thoughts of other Users, here.  He has also put together a useful, concise guide for exporting and saving readings for subsequent graphing and analysis.  Download a copy of Peter's guide below.  Thanks Peter!
PETER'S GUIDE
